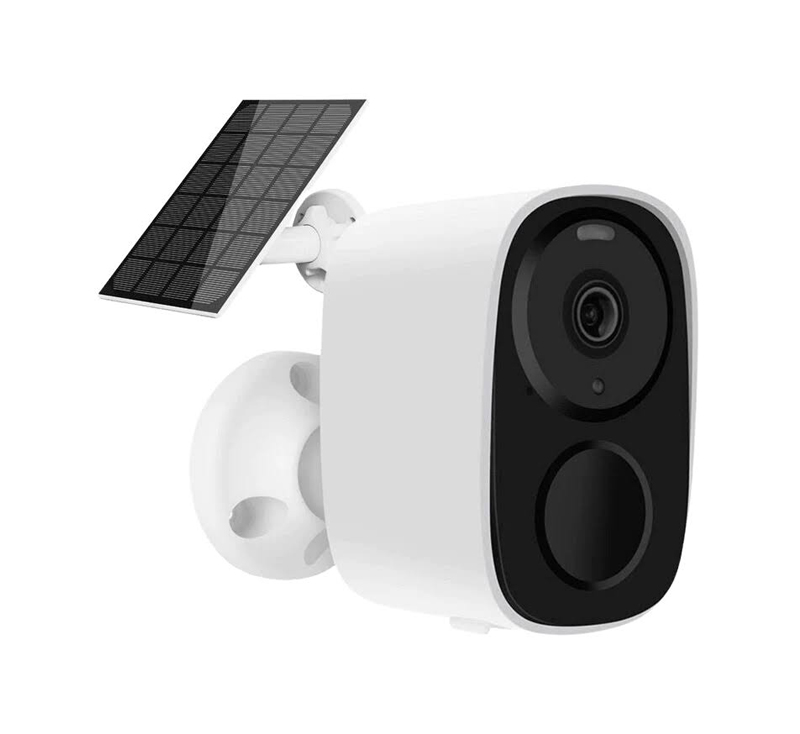

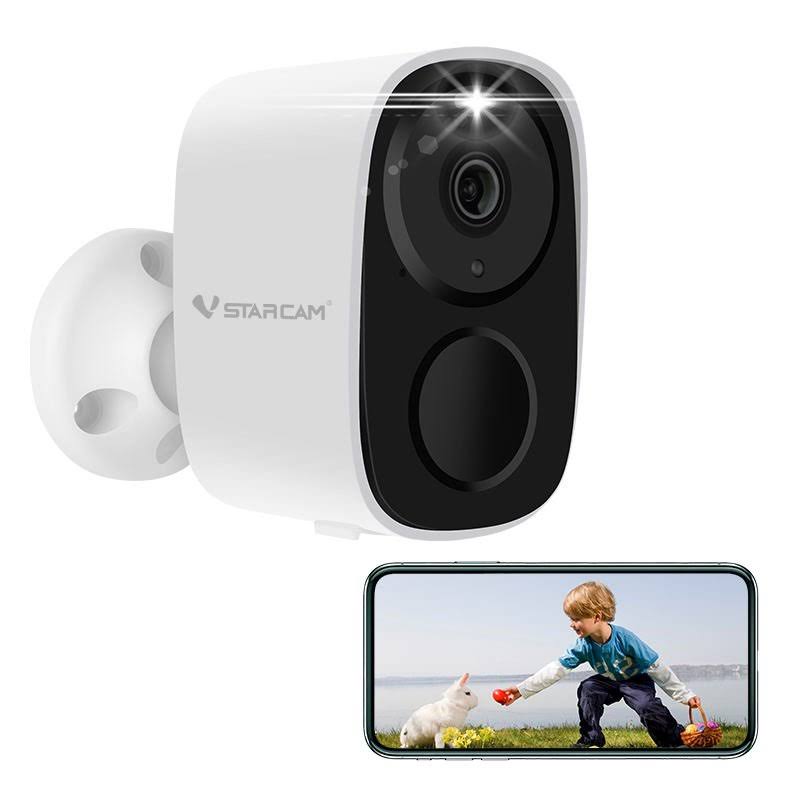

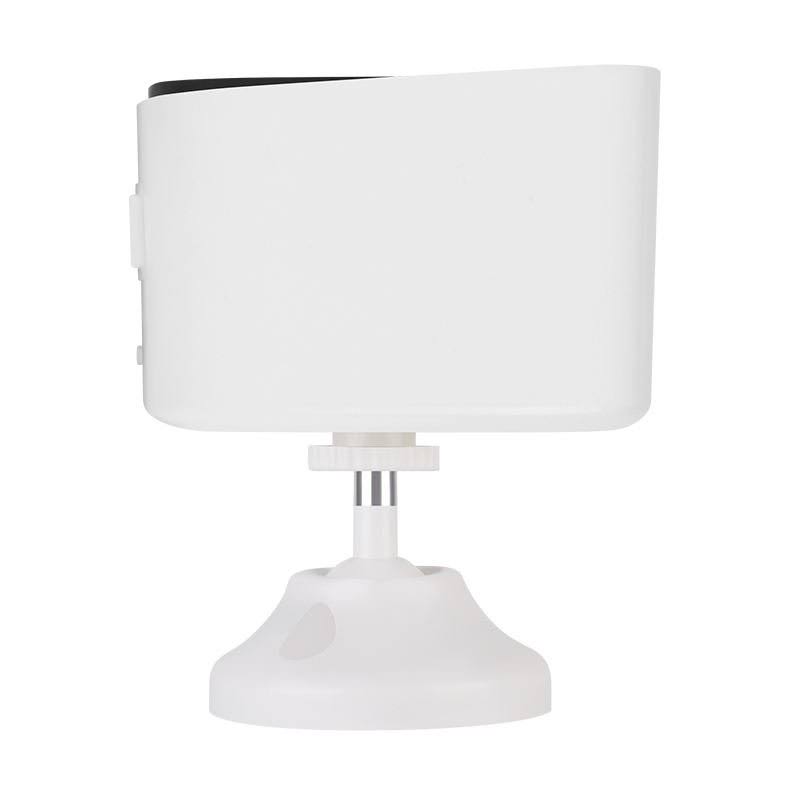

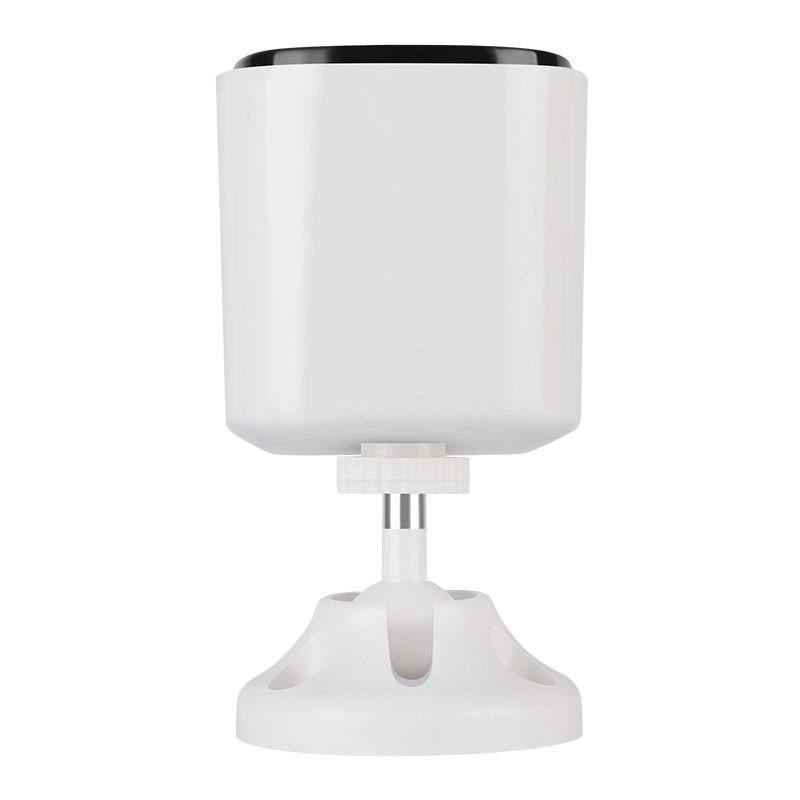

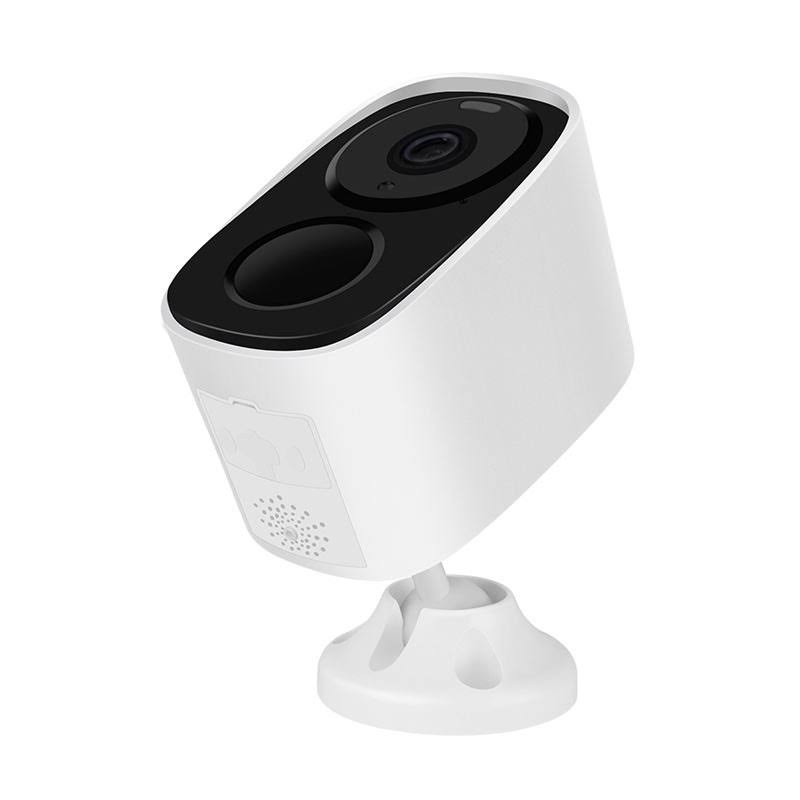

VStarcam CB54-TZ Indoor/Outdoor 3MP Battery Solar WiFi Camera

Wireless outdoor solar camera from Vstarcam with a discreet and modern look. It has a 3MP resolution sensor and can transfer a 1269p HD resolution image. It supports Wi-Fi connection, two-way voice and audio transmission, and can also detect human silhouette and motion and send notifications to your smartphone whenever motion is detected. It can be operated remotely via a smartphone device and the O-KAM app. In addition, it supports night vision mode with color image for tracking even in the dark, and recorded videos are stored internally on micro SD (not included) or directly to a cloud account. It is powered by a built-in battery with a capacity of 5000mAh, which is recharged via a USB cable or with solar energy via the solar panel.

• Wi-Fi connection
• Easy installation
• IP66 level waterproof protection
• 3MP camera sensor with 1080p HD resolution
• Built-in 5000mAh capacity battery
• Solar panel to charge the battery through solar energy
• Motion & human silhouette detection with smartphone notifications
• Two-way voice and audio transfer
• Night mode with black & white & color image
• Easy handling via mobile application
• Supports recording to micro SD card & cloud
• Compatible app: O-KAM
• 1 Year Warranty

  Package Contents

• Camera
• Solar panel
• Camera wall mount
• Panel wall mount
• USB to Micro USB charging cable
• Screwdriver
• Screws & washers
• Manual

SPECIFICATION

Category	Type	Parameters
System	Operating�system	Linux
Online�visitors	Support�4�visitors�online�at�the�same�time
App	Veesee�-�overseas
Collection	Processor	T31ZL��1.5GHZ
Memory	512Mb
Image�sensor	GC2063, 3MP,1/2.9 CMOS (pixel optional, PCB compatible)
Minimum�illumination	0.8Lux/F1.4�(Color�mode),�0.3Lux/F1.4�(B&W��mode)
Lens	Standard�lens�4mm,1G3P,�IR-CUT�integrated
Sensor�performance	Support�Automatic�white�balance,�Automatic�gain�control,�Automatic�backlight�compensation
Viewing�angle	D110� diagonal
Video	Night�vision	Black�and�white�night�vision,�Automatic�switching�of�IR-CUT,�6�pcs�850nm�IR�LED�lights,�Irradiation�distance:�5�~�10m
Compression�standard	H.265�/H.264�/MJPEF/JPEG
Multi�code�stream	1080p�/�15fps,�360p,�JPEG�capture
IR�control	IR�turned�on--�the�Night�vision�ON;�IR,�ICR�automatic�detection;�IR�turned�off--�the�Night�vision�function�disabled/�IR�always�OFF,�ICR�is�fixed�in�the�Day�vision�mode
Bit�rate	CBR�/�VBR�two�rate�control�modes,�and�the�output�rate�range�is�128�~�4096kbps
Image�adjustment	Brightness,�contrast,�vertical,�horizontal�adjustable,�OSD�display
Audio	Input	Built-in�-�38dB�microphone
Output	Built-in� speaker
Sampling�frequency�/�Bit�width	8KHz/16bit
Compression�standard�/�Bit�rate	G711A
Network	Network�protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P,IPV4�etc
Wireless�network	IEEE802.11b/g/n
Wireless�frequency	2.4~2.4835GHz
Wireless�security�encryption	64/128-bit�WEP/WPA-PSK/WPA2-PSK�data�encryption
Wireless�connection	AP�hotspot�network�configuration,�QR�code�network�configuration
Key	Key�1	Power�ON/OFF
Reset�Key	Long�Press�to�restore�the�factory�settings
Storage	Storage�function	Support�T-Flash�card�(up�to�256GB)
Alarm	Alarm�detection	Support�PIR�human�detection;�Detection�distance:�6m
Physical�indicators	Rated�voltage	DC5V�5%
Power�supply	Comes�with�5000mAh�battery�power�supply,�2*18650,�supports�external�3V,�5V�solar�panels
Power�consumption	Sleep�current�500uA,�Working�current:�390mA
Work�environment	Working�temperature:�-�10�~�55�?,�Working�humidity�<�90%
Weight	Gross�weight:�TBD�(Note:�in�kind�prevail)
Size	TBD
Packing�list	Camera�*�1,�Bracket�*�1,�MICRO�USB*�1,�Manual�*�1,(Solar�panel*1,�Solar�panel�bracket*1�optional)
